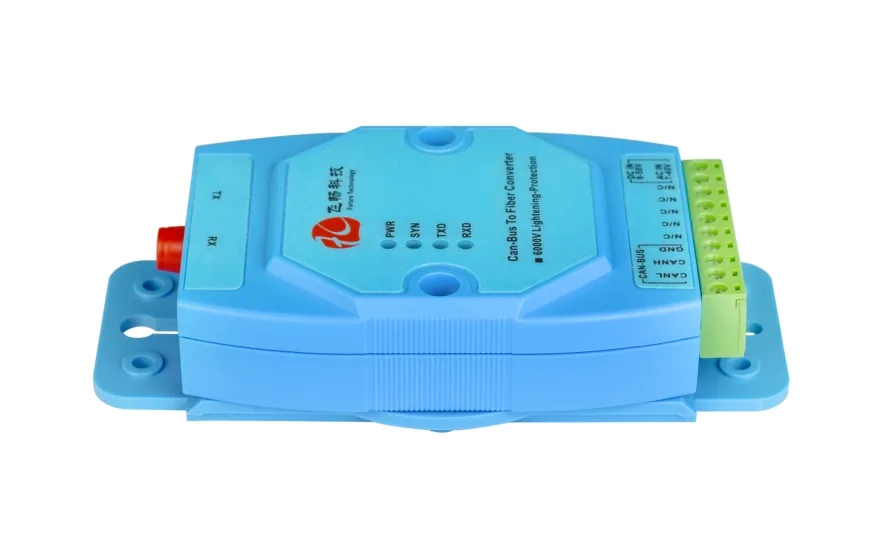

Industrial Grade 1-2 channel CAN Bus Fiber Modem

Type:FCM-C1/2 Message

Description:1 fiber interface; 1~2 CAN bus interfaces;Simultaneous transmission of 1-2 CAN bus data over fiber.

Product Description
        The CAN fiber modem can transfer CAN bus signal to optical signal and transmit over fiber which can extend the communication distance of CAN bus. At the same time due to adopting optical fiber communication it solves the problems of electromagnetic interference ground ring interference and lightning damage and greatly improves the reliability security and confidentiality of data communications and can be widely used in various industrial control process control and traffic control applications. It is particularly suitable for banks power and departments or systems that have special requirements for electromagnetic interference.
Functional Properties
◆ based on proprietary integrated circuit;
◆ Provide 1~2 CAN bus interface an optical port;
◆ CAN transparent data transmission without any set;
◆ CAN interface Maximum number of nodes 128CAN interface rate 0-1Mbps;
◆ CAN interface speed in line with international CAN1.0 CAN2.0 standard;
◆ DC9-55V or AC7-50V wide supply that includes an automatic polarity detection function no need to distinguish positive and negative installation;

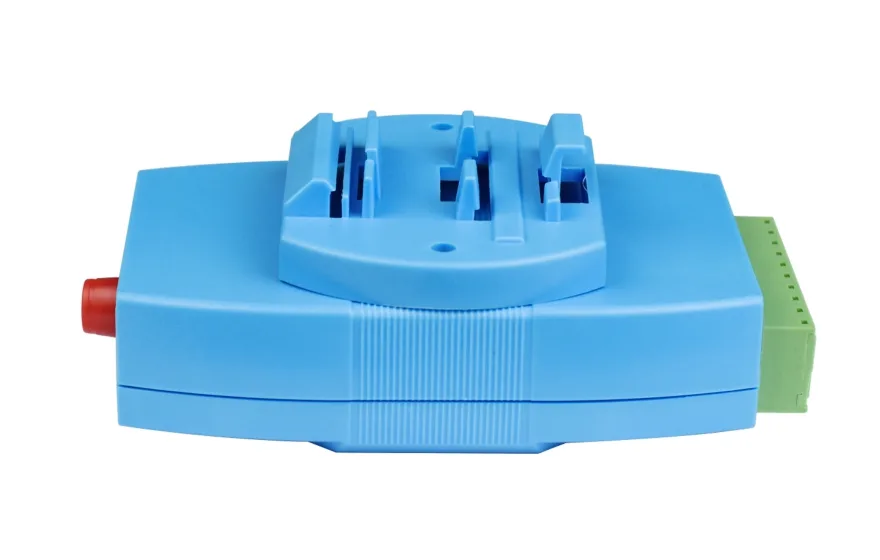

◆ Provide DIN 35mm rail mounting or wall mounting;
◆ CAN interface with lightning protection lightning reached GB / T17626.5 (IEC61000-4-5)Short circuit current wave 8 / 20μs open standard peak output voltage 6KV.
Technical Parameters
◆ Fiber
Optical port:1
Optical Fiber:Single/Dual fiber
Fiber interface:FC/SC/ST
Wavelength:850nm/1310nm Multimode;1310nm/1550nm Single mode
Receive sensitivity range:-28dBm~- 40dBm
◆ Can bus interface
Standard
Protocol: In line with international CAN1.0 CAN2.0 standard
Rate: 0~1000Kbps
Physical Interface: Industrial Terminals
CAN Definitions: CANH CANL GND
 Electrical and mechanical feature
Relay-free transmission distance: 20~120Km
Typical transmit power:
Single mode1310/1550nm:≥-9dBm
Multimode850nm:-18dBm
Multimode1310nm: -25dBm
System power: AC7V ~50V;DC 9V~ 55V
Power consumption: ≤2W
Size:  (L × W× H)  72×125×26mm DIN Rail type
◆ Working environment
Operating temperature:-40℃—+85℃
Storage temperature:  -40℃—+85℃
Working humidity:    0%—95% (No condensation)
MTBF:    >100000 hour

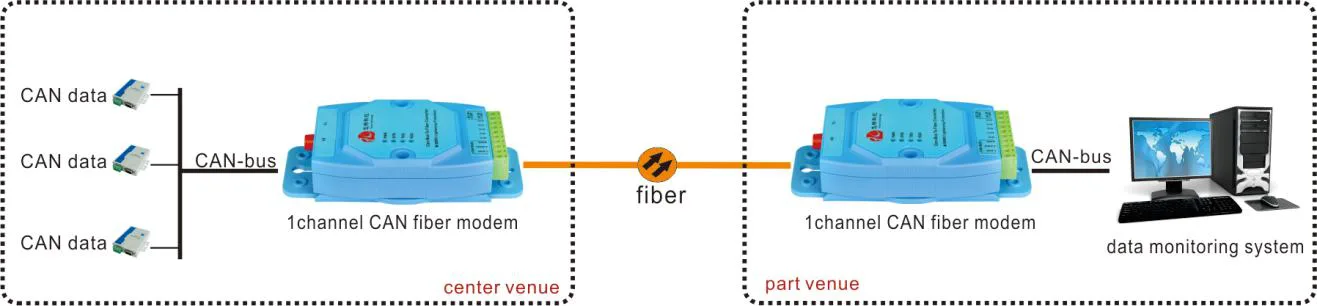

Application Scheme
Industrial Grade 1-2 ch CAN Bus Fiber Modem
