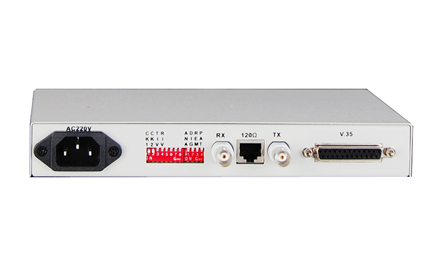

Framed E1-RS530 Converter

Type:FCC-E1fR530 Message

Description:framed E1-RS530 (EIA-530) between the interface Converter

Product Description
         This device provides an economical digital access solution for E1 and Fractional E1 network services. With a adapter cable, the device can connect to other DTE device, such as router, at data rates of 64Kbps to 2048Kbps.User data is placed into the E1 frame, using only the required number of timeslots, timeslot assignment is accomplished according to the data port speed and manual setting of DIP switches. GVE is widely used in communication network, both in WAN and LAN connection field.

Functional Properties
Ø Comply with ITU V.35,G.703,G.704,G.706,G.823
Ø Framed(N*64Kbps) and unframed(2.048Mbps) optional
Ø Frame mode support PCM30/PCM31
Ø Support CRC4
Ø   Support E1 recovery clock
Ø   Provide analog and digital loopback test
Ø   For E1 interface,75ohm(unbalanced) and 120ohm(balanced) optional
Ø   For data interface, V.35 and V.24/RS232 optional
Ø   Comprehensive LED indicators on front panel, convenient for the diagnosis of equipment working state
Ø Stand-Alone and Rack-Mount type available
Ø   16-slots,elaborate cooling design and two redundant power supply
Ø   Timeslot can be selected
Ø   48V DC & 220V AC power supply optional

Technical Parameters
u   RS530 Interface

    Interface Rate:2048K
    Interface character: match ITU-T V.24
    Connector: DB25 male/female (optional).
    Interface type: DCE
    Clock: G.703 resume clock, internal /RS530 external clock.

u   Ethernet interface

    Interface Standard:  comply with protocol G.703;

    Interface Rate:  2048Kbps±50ppm;

    Interface Code: HDB3;

    Impedance:   75Ω (unbalance), 120Ω (balance);

    Jitter tolerance: In accord with protocol G.742 and G.823

    Allowed Attenuation: 0~6dBm

u   Power

    Power supply: AC180V ~ 260V;DC –48V;DC +24V

    Power consumption: ≤10W

u   Dimension

    Product size: 485X438X44mm(WXDXH)
    Simple packaging: 522X198X82mm(WXDXH)
    Piece weight : 1.8KG

u  Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity: 5%~95 % (no condensation)
    Storage temperature: -40°C ~ 80°C
    Storage Humidity: 5%~95 % (no condensation)

Application Scheme

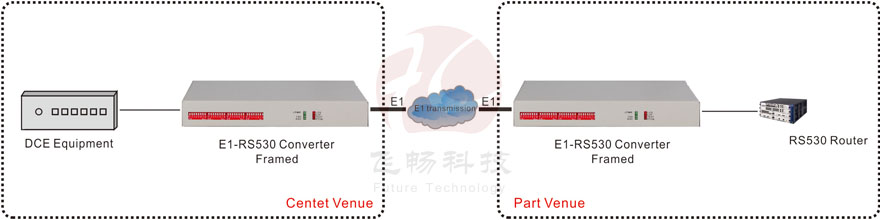

Applications 1

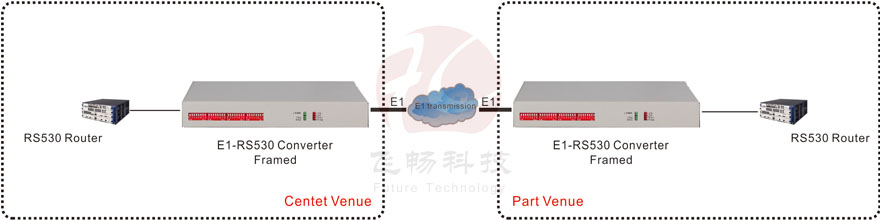

Applications 2
