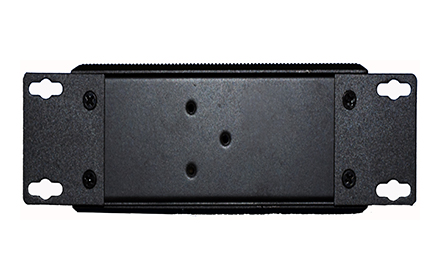

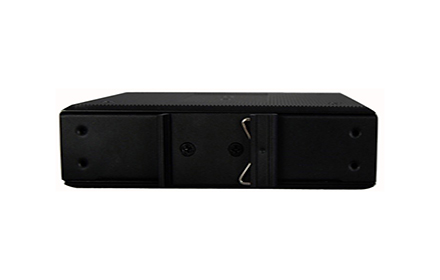

Industrial rail 16channel unidirectional / 8channel bi-dire

Type:FCP-K16G Message

Description:1-16 dry contact signal transmission over fiber, digital signal and dry wet node node (volume level) optional, can be configured as 8 inputs and 8 outputs, dual 9-48V power supply, IP40 protection class.

Product Description
     This series 1-16 road Optical switch pure switch (alarm amount) Optical, other manufacturers are not the same as a shield with switching video Optical video interface.1-16 provide a one-way or 8-way switch switch two-way optical fiber transmission, the product solves electromagnetic interference, ground loop interference and lightning damage problems, improve the reliability of data communications, security and confidentiality, It can be widely used in various industrial control, process control, and traffic control and other occasions, especially for banks, electricity and electromagnetic interference environment have special requirements of departments and systems.

Functional Properties
Ø Integrated circuit based independent intellectual property rights
Ø Supports unidirectional and bidirectional switch 16 8-way switch
Ø Each volume switch on and off the LED status indicator
Ø Input switch open and close automatically detects when the input what state switch output that is why the state to facilitate the project opened
Ø State switch in the boot or no access to its fiber optic switch a steady state, the state will not be chaotic action
Ø Supports a wide range of AC and DC input, supports internal isolation, redundant dual power inputs with support for overload protection, anti-reverse protection
Ø Industry-four electromagnetic compatibility requirements
Ø Super lightning protection: lightning, induction can be anti-hypertension, anti-surge
Ø Fanless efficient cooling, reducing repair time
Ø IP40 enclosure protection rating, can withstand the test of harsh environments
Ø Rail or wall mounting
Ø Wide temperature range: Operating Temperature -40 ℃ ~ + 85 ℃
Ø All models have passed 100% burn-in test, Warranty period: 5 years
Ø Redundant dual power inputs DC9-48V / AC9-48V
Ø Switch interface Lightning reached IEC61000-4-5 (8 / 20μS) differential mode: 6KV, impedance (2Ω); common mode: 6KV, impedance (2Ω) standard
Technical Parameters
u Fiber
Multi-mode Fiber
50/125um, 62.5/125um,
Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber,attenuation (3dbm/km)
Wave Length: 820nm
Transmitting power: -12dBm (Min) ~-9dBm (Max)
Receiver sensitivity: -28dBm (Min)
Link budget: 16dBm
Single-mode Fiber
8/125um, 9/125um
Maximum transmission distance: 40Km
Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)
Wave Length: 1310nm
Transmitting power: -9dBm (Min) ~-8dBm (Max)
Receiver sensitivity: -27dBm (Min)
Link budget: 18dBm
u Dry contact
Respond Time: <1ms
Switch Signal: 30VDC/0.5A
The maximum switching frequency 50HZ
u Working environment
Working temperature: -10°C ~ +85°C
Working Humidity: 0%~95 % (no condensation)
Storage temperature: -40°C ~ 85°C
MTBF：          ＞500,000hours

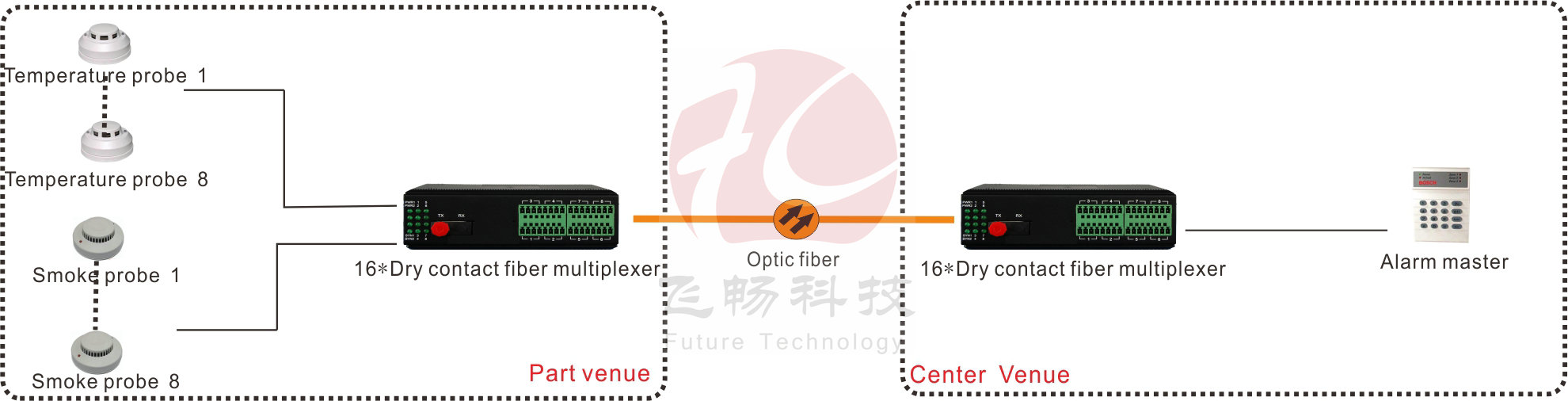

Application Scheme
