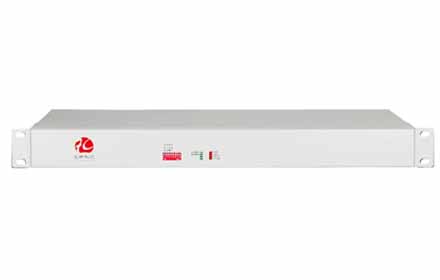

64 Channel Unidirectional/32 Channel Switch Bidirectional Op

Type:FCP-K64 Message

Description:64 Channel Switch Optical Multiplexer , Interface could Dry node or Volume level

Product Description
                The mini type 1-64 switch output optical pure switch (alarm) optical transceiver, and not the other manufacturers to shield the band switch video video interface.
                1-64 provides a one-way road switch or 32 channel switch in optical fiber transmission, which solves the problem of electromagnetic interference, the interference and the lightning damage, improve the reliability of communication, data security and confidentiality, and can be widely used in various industrial control, process control and traffic control and other occasions, especially for banks electrical and electromagnetic interference to the environment, the special requirements of the Department and the system.
Functional Properties
Ø Based on proprietary integrated circuit;

Ø Enter the normally open normally closed switch automatically detects when the input what state switch output that is

       why the state to facilitate the opening of the project;

Ø switch turned on when not connected to other switches or fiber state is stable, does not appear chaotic action status;
Ø can support one-way and two-way eight-way switch 4-way switch;
Ø switch interface Lightning reach IEC61000-4-5 (8 / 20μS) differential mode: 6KV, impedance (2Ω); Common mode: 6KV, impedance (2Ω) standard;
Ø optional AC 220V, DC -48V, DC + 24V, DC power no positive and negative points;
Technical Parameters

u  Fiber

         Multi-mode Fiber

    50/125um, 62.5/125um,

    Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm

    Transmitting power: -12dBm (Min) ~-9dBm (Max)

    Receiver sensitivity: -28dBm (Min)

    Link budget: 16dBm

        Single-mode Fiber

    8/125um, 9/125um

    Maximum transmission distance: 40Km

    Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

    Wave Length: 1310nm

    Transmitting power: -9dBm (Min) ~-8dBm (Max)

    Receiver sensitivity: -27dBm (Min)

    Link budget: 18dBm

u  Switch

    Respond Time: <0.5ms
    Switch Signal: 30VDC/0.5A

    The maximum switching frequency 50HZ
    Physical interface: RJ45

u   Power

    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

u   Dimension

    Product Size:         483X138X44mm(WXDXH)

       Piece Weight :    2.4KG

 u  Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)

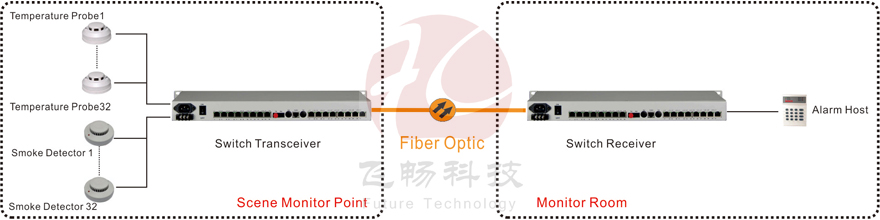

Application Scheme
