8*POTS+4RS232 Fiber Mux(Desktop Tpye)

Type:FCP-O8R4/FCP-S8R4 Message

Description:8 * telephone(Desktop Tpye),4RS232/422/485/dry connect,Support 4U rackmount,SNMP

Product Description
      This device is a desk-top PCM multiplexer that can provides 1-8 channel FXO/FXS telephone and 4 channels RSS232/422/485 interface, wall-mouthed or 4U rack plug-in, support the SNMPA service.
Functional Properties

Ø Based on self -copyright IC

Ø   Voice port supports FXO and FXS port, magneto telephone interface, FXO port docking with program-controlled switchboard,

       FXS port connected to the user's telephone;

Ø   Voice FXO/FXS access supports caller ID feature and reverse polarity billing functions

Ø   Support various sites mutual number allocation function

Ø The transmission distance is up to 2-120Km without interruption

Ø The 4 U rack plug-in can be offered and support the SNMPA service.

Ø AC 220V, DC-48V, DC24V can be optional

Ø Data interface provide the lightning-protection function,which can reach the 17626.5(IEC61000-4-5) (8/20μs), CM (6KV).

Technical Parameters

u  Fiber

         Multi-mode Fiber

    50/125um, 62.5/125um,

    Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm

    Transmitting power: -12dBm (Min) ~-9dBm (Max)

    Receiver sensitivity: -28dBm (Min)

    Link budget: 16dBm

        Single-mode Fiber

    8/125um, 9/125um

    Maximum transmission distance: 40Km

    Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

    Wave Length: 1310nm

    Transmitting power: -9dBm (Min) ~-8dBm (Max)

    Receiver sensitivity: -27dBm (Min)

    Link budget: 18dBm

u  E1 Interface

    Interface Standard:      comply with protocol G.703;
    Interface Rate:             n*64Kbps±50ppm;
    Interface Code:            HDB3;

    E1 Impedance:             75Ω (unbalance), 120Ω (balance);

    Jitter tolerance:            In accord with protocol G.742 and G.823

    Allowed Attenuation:   0~6dBm

u  Ethernet interface(100/100M)

    Interface rate:              10/100 Mbps, half/full duplex auto-negotiation

    Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

   MAC Address Capability: 4096

    Connector:                  RJ45, support Auto-MDIX

u  FXS Phone Interface

    Ring voltage: 75V

    Ring frequency: 25HZ

    Two-line Impedance: 600 Ohm (pick up)

    Return loss: 40 dB

u  FXO Switch Interface

    Ring detect voltage: 35V

    Ring detection frequency: 17HZ-60HZ

    Two-line Impedance: 600 Ohm (pick up)

    Return loss: 40 dB

u  EM 2/4 Line

    AD: 0dB

    DA: -3.5dB

    Two/Four-line Impedance: 600 Ohm

    Return loss: 20 dB

u   Power

    Power supply: AC180V ~ 260V;DC –48V;DC +24V

    Power consumption: ≤10W

u   Dimension

    Product Size:         216X140X31mm(WXDXH)

    Piece Weight :    1.5KG

 u  Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)


Application Scheme

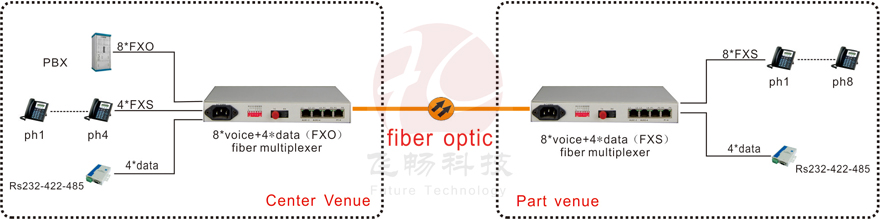

Applications  1

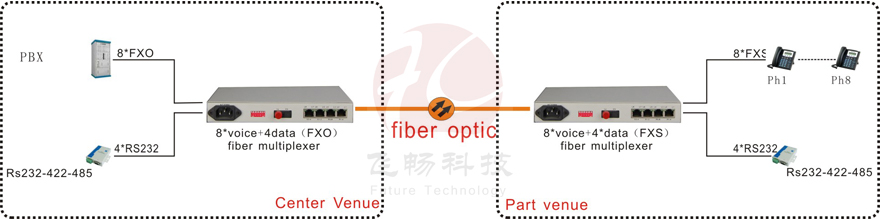

Applications 2
