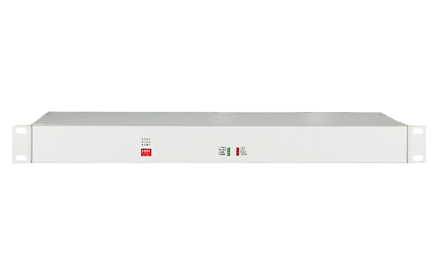

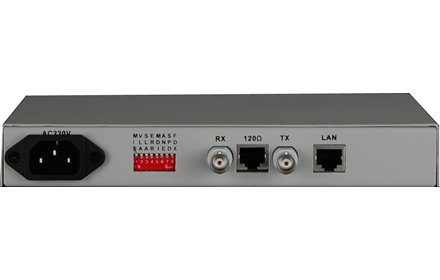

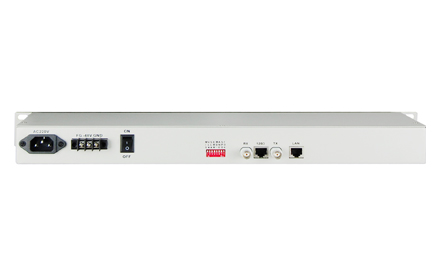

Unframed E1-FE Converter

Type:FCC-E1F1 Message

Description:1channel unframed E1 - FE converter，With E1 loopback detection function

Product Description
                This interface converter provides one unframed 2048K E1 interface and one Ethernet interface to achieve 10/100Base-T Ethernet data transmission on the E1 channel. It is a high performance, self-learning Ethernet bridge. This device is the extension device of Ethernet, using network (PDH/SDH/Microwave) that provide E1 channel to achieve local and remote Ethernet interconnecting with serial interfaces at a lower cost. The device has inter-set loop test function to facilitate the project launching and daily maintenance.

Functional Properties
Ø Based on self -copyright  IC

Ø Support unframed mode (2048K) set and can manage the remote device condition ,

      OAM management data did not take up user’s timeslot

Ø Have the function of E1 interface loop back check, avoid the converter crashed because of interface loop back;
Ø Have indicator when the device is power-off or E1 line is broken or lose signal;
Ø Can set the E1 line that not to send the LINK signal to Ethernet interface while E1 line is broken;
Ø The Ethernet interface supports jumbo frames (2036 Bytes);
Ø Inter-set dynamic Ethernet MAC address (4,096) with local data frame filtering

Ø Ethernet interface supports10M/100M, half/full duplex auto- Negotiation and AUTO-MDIX

      (crossed line and straightly connected line self-adaptable );

Ø Have Ethernet monitor self-reset function, the equipment will not dead
Ø Can achieve the remote device setting any 5 mode of Ethernet and can closed the AUTO-MDIX function;
Ø Provide 2 clock types: E1 master clock and E1 line clock;
Ø The local device can forced the remote device rate follow it(when the device is unframed mode, that is invalid)

Ø Have three Loop Back Mode: E1 interface Loop Back (ANA)、Ethernet interface Loop Back(DIG)、Command the remote

      Ethernet interface Loop Back(REM)

Ø Provide 2 impedances: 75 Ohm unbalance and 120 Ohm balance;
Ø Support SNMP Network Management;
Ø Can realize monitor of remote equipment temperature and voltage from local equipment;

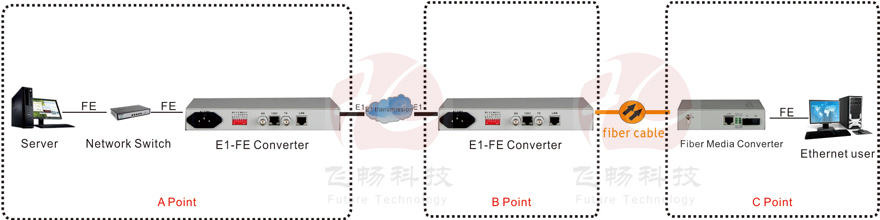

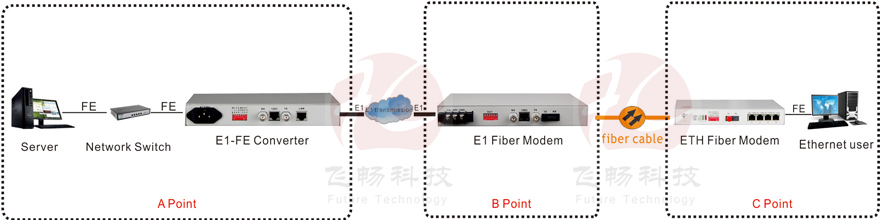

Ø Can form the structure: Ethernet E1 Bridge(A)－－-E1 Optical Fiber Modem(B)－－-Ethernet Optical Fiber Modem (C)

Ø Can form the structure: Ethernet E1 Bridge(A)－－-Optical Ethernet Modem(B)－－-Ethernet Optical Fiber Transceiver (C),

      can manage (B) and (C) at (A)


Technical Parameters
u  E1 Interface

    Interface Standard:      comply with protocol G.703;
    Interface Rate:             n*64Kbps±50ppm;
    Interface Code:            HDB3;

    E1 Impedance:             75Ω (unbalance), 120Ω (balance);

    Jitter tolerance:            In accord with protocol G.742 and G.823

    Allowed Attenuation:   0~6dBm

u Ethernet interface (10/100M)

    Interface rate:              10/100 Mbps, half/full duplex auto-negotiation

    Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

    MAC Address Capability: 4096

    Connector:                  RJ45, support Auto-MDIX

u   Power

    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

u   Dimension

    Product Size :       216X140X31mm( WX DXH))

    Simple packaging : 274X193 X84mm ( WX DXH)

    Piece Weight: 1.2KG

u  Working environment

    Working temperature: -10°C ~ 50°C

    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)


Application Scheme

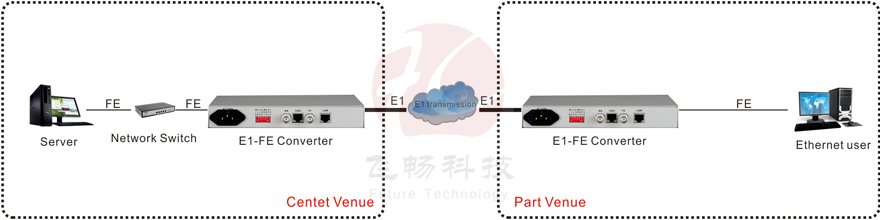

Applications 1



Applications 2


Applications 3
