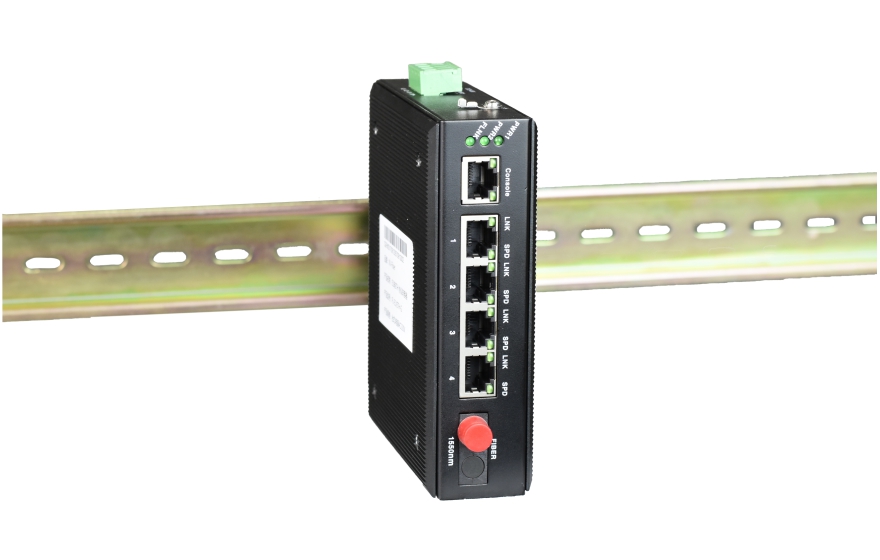

Phy- Isolated 4* FE Fiber Media Converter

Type:FCMG-F4pN Message

Description:This equipment provides 4*isolated wire-speed 100M Ethernet paths in one optical direction (single or dual fiber) providing a total bandwidth of bi-directional 4*100M which is ideal for building both intranet and public information Networ

Product Description
    This equipment provides 4*isolated wire-speed 100M Ethernet paths in one optical direction (single or dual fiber) providing a total bandwidth of bi-directional 4*100M which is ideal for building both intranet and public information Network and need 4 high degree of network isolation occasions but also particularly suitable for fiber optic cable resources are extremely tense at the same time require a lot of independent Ethernet path of the occasion.
    The device is based on an Ethernet switch chip+FPGA solution with remote OAM frame management functions and supports Console/WEB/Independent SNMP network management. It can also be interconnected with a 4U card-type  transceiver with SNMP network management SNMP software to manage this device;
Functional Properties
◆ Industrial Ethernet series designed for harsh industrial environments
◆ The device provides 4*FE ports 1*500M optical port an optional Console/SNMP network management port;
◆ For network switches to provide link aggregation channel the two-way bandwidth of 4*100M the same fiber optic line transmission of four FE network services;
◆ Optical interface supports three optical fiber transmission modes of multimode dual fiber single mode dual fiber single mode single fiber SC / ST / FC / LC interface optional;
◆ With broadcast storm protection balance of traffic isolation and conflict detection errors and crash self-reset and other functions suitable for video transmission and other large data applications;
◆ Supports the transmission of long data packets in VLAN and can be used with switch products that support IEEE802.1Q protocol to support Ethernet packets up to 10K bytes.
◆ The device is an Ethernet switch chip + FPGA solution with remote OAM management frame function and can be interconnected with a 4U card with SNMP network management. SNMP software can manage this device.
◆ The NMS can view and manage the interface status and settings of the local Ethernet interface and the remote Ethernet interface in real time. The device can detect the power-off of the Ethernet interface when the optical signal is lost or the fiber fails.
◆ Support a wide range of 9-55V AC and DC power input;
◆ Support internal isolation redundant dual power input;
◆ Power supply support overload protection anti-reverse protection
◆ Meet the industrial four electromagnetic compatibility requirements;
◆ Super lightning protection function: lightning protection anti-induced high voltage anti-surge and so on;
◆ Fanless efficient cooling reduce repair time;
◆ Anodized aluminum housing IP40 degree of protection able to withstand the harsh environment test;

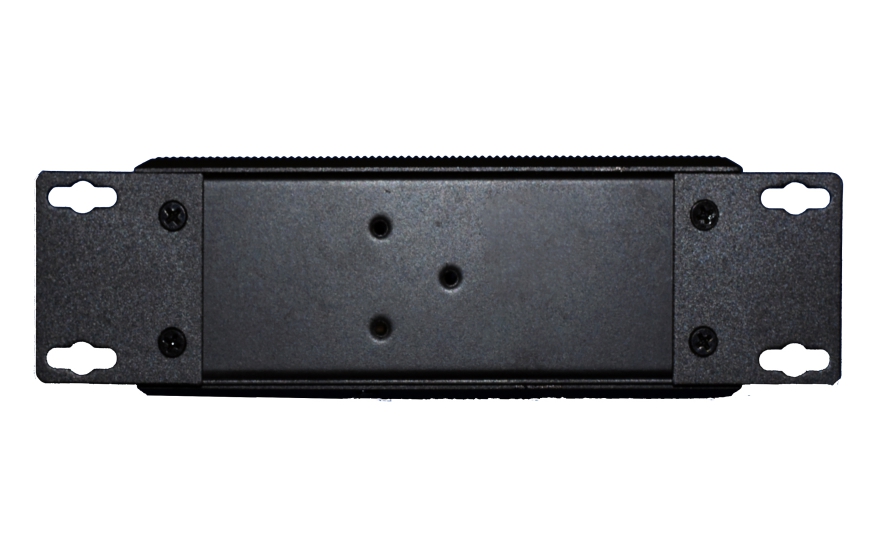

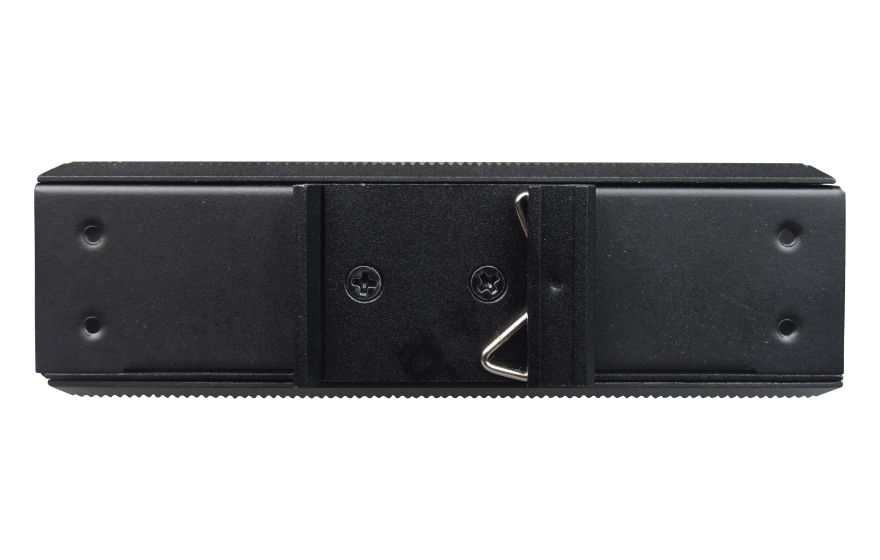

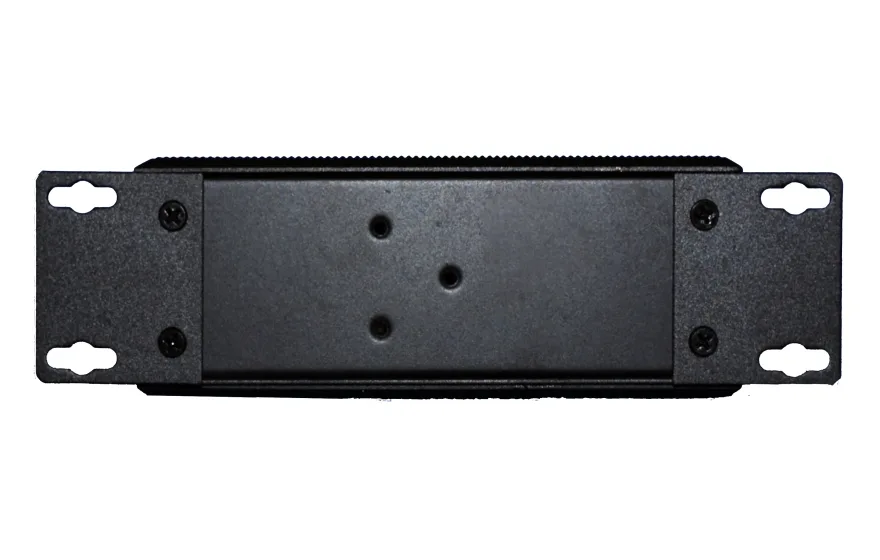

◆ Rail or wall-mounted
◆ Wide temperature type: Operating temperature -40 ℃ ~ +85 ℃;
◆ All models are 100% baked machine test the warranty period: 5 years;
Technical Parameters
◆  E1 Interface
    Interface Standard:      comply with protocol G.703;
    Interface Rate:             n*64Kbps±50ppm;
    Interface Code:            HDB3;
    E1 Impedance:             75Ω (unbalance) 120Ω (balance);
    Jitter tolerance:            In accord with protocol G.742 and G.823
    Allowed Attenuation:   0~6dBm
◆  Ethernet interface (10/100M)
    Interface rate:              10/100 Mbps half/full duplex auto-negotiation
    Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)
    MAC Address Capability: 4096
    Connector:                  RJ45 support Auto-MDIX
◆  Power
    Power supply: AC180V ~ 260V;DC –48V;DC +24V
    Power consumption: ≤10W
◆  Dimension
    Product Size: Mini Type    216X140X31mm(WXDXH)
            Simple packaging:   274X193X84mm(WXDXH)
            Piece Weight :    1.25KG
◆  Working environment
    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)
    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)

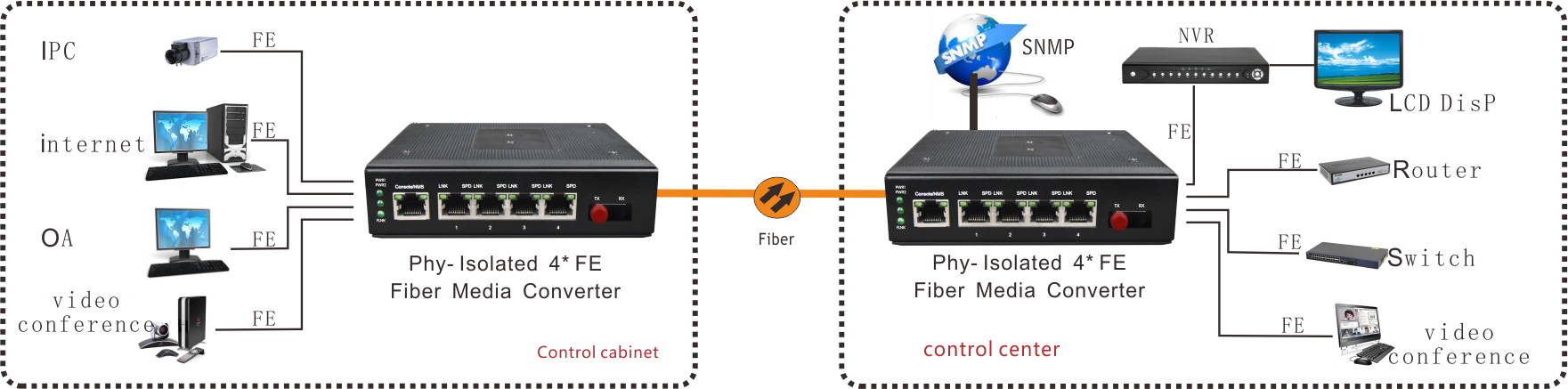

Application Scheme
