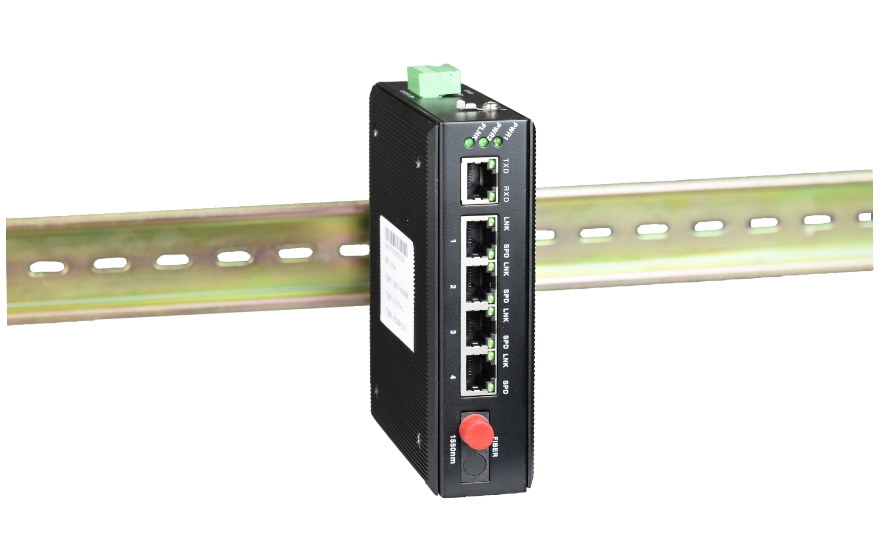

Managed Industrial 4*FE+1*Serial Switch

Type:FCMG-F4R1N Message

Description:This series of products is the Ethernet IEEE802.3 media converter to achieve a road 100 megahertz light to turn 4*FE+1*RS232/422/485 serial port support (20/40/60/80/120 km )transmission. The device is based on the Ethernet switching chip

Product Description
    This series of products is the Ethernet IEEE802.3 media converter to achieve a road 100 megahertz light to turn 4*FE+1*RS232/422/485 serial port support (20/40/60/80/120 km )transmission.
The device is based on the Ethernet switching chip + FPGA program with a strong local and remote management functions;
Functional Properties
◆ Industrial rail design designed for harsh and harsh industrial environments;
◆ Equipment to provide 4*FE 1*RS232/422/485 serial interface 1 channel 100M optical Ethernet interface the total transmission bandwidth for the wire speed 100M;
◆ Electrical port 10 / 100Mbps adaptive electrical port MDI / MDI-X adaptive without manual adjustment;
◆ Switch built-in 512Kbit MP-SSRAM high-speed memory non-blocking design a crash from the reset function suitable for video transmission and other large traffic data applications;
◆ based on FPGA + ARM design with a strong local and remote management functions can be connected with the 2U card device you can configure the SNMP network management card management;
◆ Support VLAN long packet transmission can support IEEE802.1Q protocol with the switch to use the product to support up to 10K bytes of Ethernet packets;
◆ With broadcast storm protection balance flow isolation conflict and detection errors and other functions;
◆ Ethernet interface with serial data with lightning protection lightning protection to GB / T17626.5 (IEC61000-4-5) short circuit current wave 10/700μs open peak output voltage 6KV standard;
◆ Provide 1*RS232/485/422 interface optional RS232/485/422 channel can be transmitted from 0-115200 baud rate serial data;
◆ The network management real-time view and management of the local end and the remote Ethernet interface status and settings; equipment with power-down detection function can detect when the optical signal is lost when the peer device power or fiber unreasonable;
◆ Support a wide range of 9-55V AC and DC power input;
◆ Support internal isolation redundant dual power input;
◆ Power supply support overload protection anti-reverse protection;
◆ Meet the requirements of industrial four electromagnetic compatibility;
◆ Super lightning protection function: anti-lightning anti-sensor high pressure anti-surge etc .;
◆ No fan efficient cooling reduce repair time;
◆ Anodized aluminum alloy shell IP40 protection class able to withstand the harsh environment of the test;

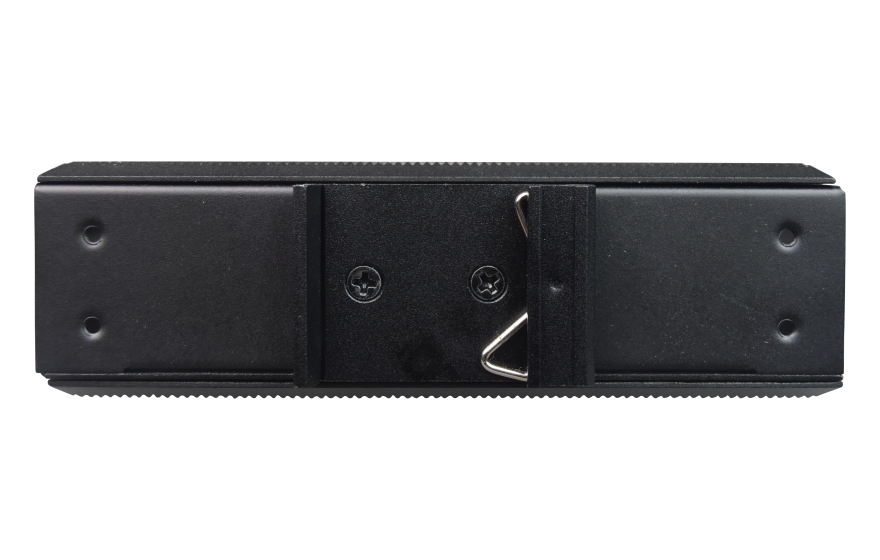

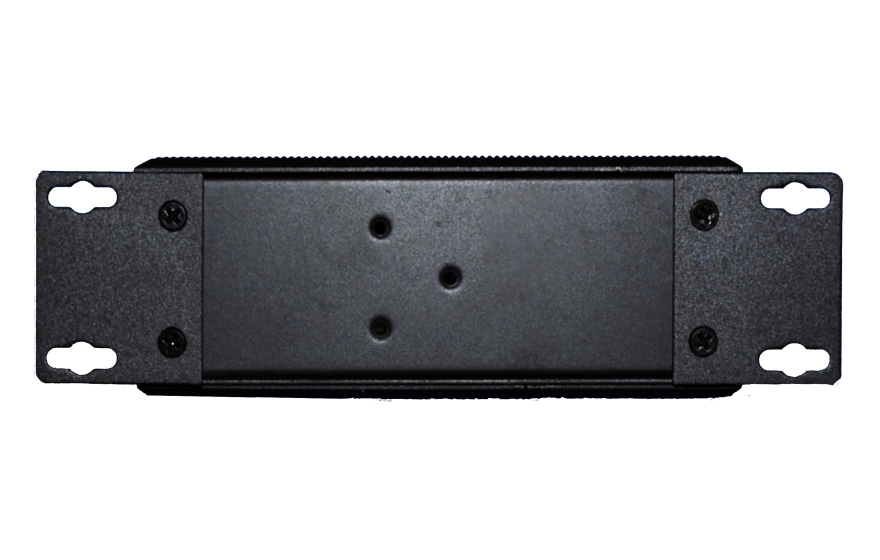

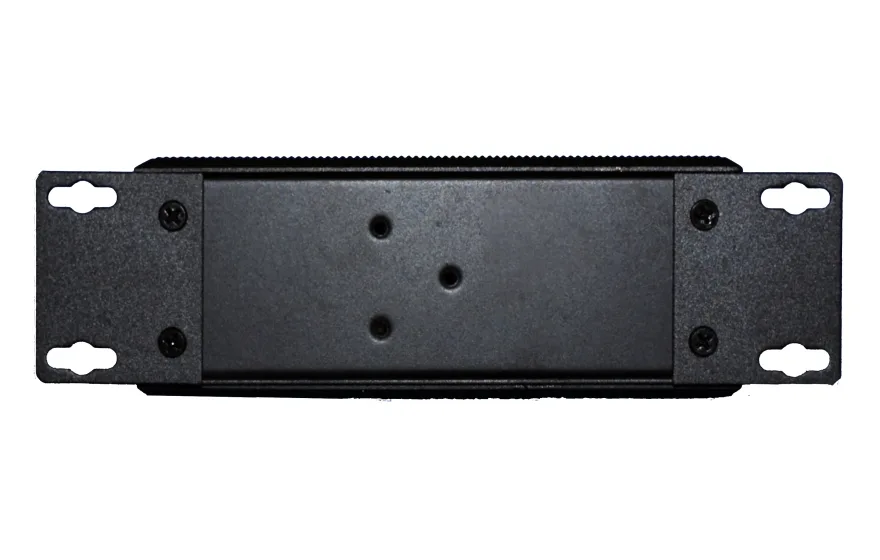

◆ Rail or wall mounted;
◆ Wide temperature type: Operating temperature -40 ℃ ~ +85 ℃;
◆ All models are tested by 100% roasting machine the warranty period: 5 years;
Technical Parameters
◆  E1 Interface
    Interface Standard:      comply with protocol G.703;
    Interface Rate:             n*64Kbps±50ppm;
    Interface Code:            HDB3;
    E1 Impedance:             75Ω (unbalance) 120Ω (balance);
    Jitter tolerance:            In accord with protocol G.742 and G.823
    Allowed Attenuation:   0~6dBm
◆  Ethernet interface (10/100M)
    Interface rate:              10/100 Mbps half/full duplex auto-negotiation
    Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)
    MAC Address Capability: 4096
    Connector:                  RJ45 support Auto-MDIX
◆  Power
    Power supply: AC180V ~ 260V；DC –48V；DC +24V
    Power consumption: ≤10W
◆  Dimension
    Product Size: Mini Type    216X140X31mm(WXDXH)
            Simple packaging:   274X193X84mm(WXDXH)
            Piece Weight :    1.25KG
◆  Working environment
    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)
    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)

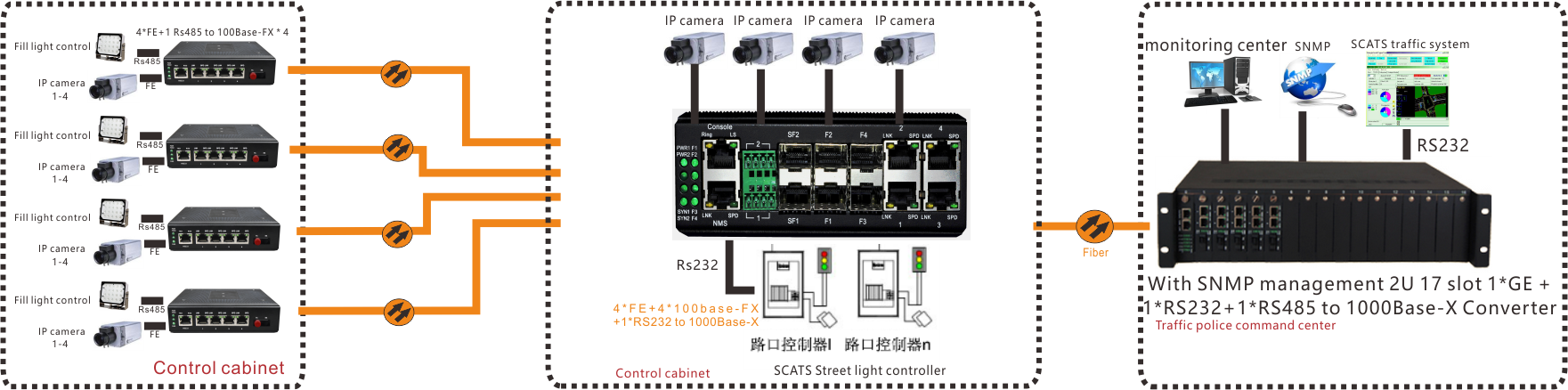

Application Scheme
