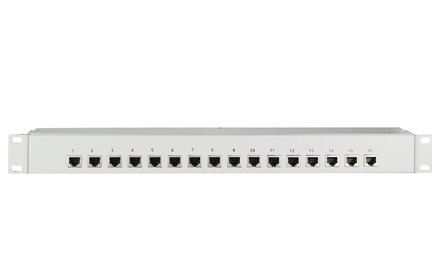

16 E1 75/120(L9/RJ45) Impedance Converter

Type:FCCZ-E16-L9 Message

Description:16 * 75 ohm E1, L9 interface into 120 ohm E1 interface

Product Description
            16xE1 Impedance Converter Provide 16 channel G.703 75(L9) to 120Ω(RJ45) Converter ,not need power;
Functional Properties
Ø E1 75/120 Interface level conforms to the ITU-T G.703 level standard template;
Ø 75 and 120 ohm impedance two-way signal conversion, easy to use
Ø Without external power supply
Technical Parameters

u  E1 Interface
     E1 interface protocol: ITU-T G.703,
     Interface Rate:      2048Kbps±50ppm
     Interface Code:   HDB3;
     Impedance:   75Ω (unbalance L9), 120Ω (balance RJ45);

u  Working environment

    Working temperature: -40°C ~ 80°C
    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 85°C
    Storage Humidity:         5%~95 % (no condensation)

    MTBF:        >500,000 hours

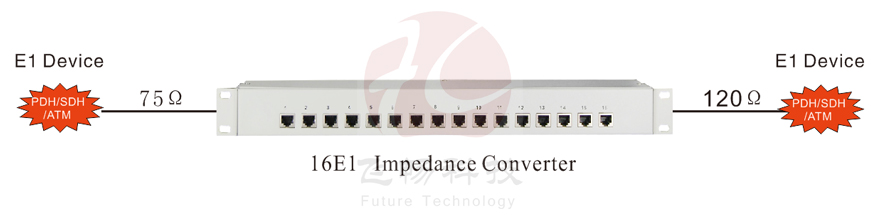

Application Scheme
